Pitch 7.92mm PCB Wire To Board Connectors Single Row 2 Pin Housing Lock For TV Set

  • 1
  • 2
  • 3

Brand Name : HRT

Model Number : A3961H-02P-2

Certification : ISO9001/ ISO14001/UL/RoHS/REACH

Place of Origin : China

MOQ : 5000PCS

Price : Negotiation

Payment Terms : TT, Western Union, PayPal, L/C

Supply Ability : 30000pcs per day

Delivery Time : 5 to 8 working days after payment checked

Packaging Details : PE bag packing ,500pcs per bag,+outer carton

Pitch : 7.92mm

Material : Nylon 66,UL 94-V0

color : Black / White/yellow

Suitable Terminal : A3961 series Terminal

Pin No. : single row 2Pin

Hook type : Inside the Button

Contact Now

Pitch 7.92mm Pcb Connectors Wire To Board Single Row 2 Pin Housing Lock For TV Set

1. Product Informations:
Housing Material: Nylon 66, UL 94-V0,
Housing color: White/Black/yellow
Housing Pin NO.: 2Pin,single row ; P/N:A3961H-02P-2
Terminal Material: Brass,(P/N:A3961-TBE);Phosphor Bronze(P/N:A3961-TPE),
Terminal E-stamping before Tin-plated.
Terminal Wire Range: AWG#18--#22, Insulation O.D.: 3.0mm(max). Qty/Reel:4000pcs.

2. Specifications:
Current Rating: 7A AC,DC
Voltage Rating: 250V AC, DC
Tenperature Range: -25ºC--+85ºC
Contact Resistance:5MΩ Max
Insulation Resistance: 1000MΩ Min
Withstanding Voltage: 1500V AC/minute

3. Mechanical Performance

Test Description Procedure Requirement
5-1 Actuator Insertion & Withdrawal Force Insert and withdraw actuator at the speed rate of 25±3mm / minute. Refer to paragraph 7
5-2 Crimping Pull Out Force Fix the crimped terminal, apply axial pull out force on the wire at the speed rat of 25±3mm / minute.(Based upon JIS C5402 6.8) AWG#16 10.2 kgf (Min.)
AWG#18 8.16 kgf (Min.)
AWG#20 6.12 kgf (Min.)
AWG#22 4.08 kgf (Min.)
5-3 Terminal Insertion Force. Insert the crimped terminal into the housing. 1.50 kgf (Max.)
5-4 Terminal/Housing Retention Force. Apply axial pull out force at the speed rate of 25±3mm / minute on the terminal assembled in the housing. 3.00 kgf (Min.)
5-5 Pin Retention Force Apply axial pull out force at the speed rate of 25±3mm / minute. 3.00 kgf (Min.)
5-6 Durability When mated up to 50 cycles repeatedly by the rate of 10 cycle per minute. Contact Resistance 20mΩ (Max.)
5-7 Vibration

Amplitude: 1.5mm P-P
Sweep time: 10-55-10 Hz in 1 minute Duration: 2 hours in each X.Y.Z. axes.
(Based upon MIL-STD-202 Method 201A)

Appearance No Damage.
Contact Resistance 20mΩ (Max.)
Discontinuity 1 μsec.(Max.)
5-8 Physical Shock 490m/s²｛50G｝,3 strokes in each X.Y.Z. axes. (Based upon JIS C0041/MIL-STD-202 Method 213B Cond. A)



4. Environmental Performance And Others

Test Description Procedure Requirement
6-1 Temperature Rise Carrying rated current load.(Based upon UL 498) 30℃(Max.)
6-2 Heat Resistance 85±2℃,96 hours (Based upon JIS C0021/MIL-STD-202 Method 108A Cond. A)

Appearance No Damage.
Contact Resistance 20mΩ (Max.)
6-3 Cold Resistance -25±3℃,96 hours (Based upon JIS C0020)
6-4 Humidity

Temperature: 40±2℃
Relative Humidity : 90~95%
Duration: 96 hours
(Based upon JIS C0022/MIL-STD-202 Method 103B Cond. B)

Appearance No Damage.
Contact Resistance 20mΩ (Max.)
Insulation Resistance 500MΩ (Min.)
Dielectric Withstanding Voltage Must meet 4-3
6-5 Temperature Cycling

5 cycles of:
a) -55℃ 30 minutes
b) +85℃ 30 minutes
(Based upon JIS C0025)

Appearance No Damage.
Contact Resistance 20mΩ (Max.)
6-6 Salt Spray Tin-plated 12 hours / Gold- plated 24 hours exposure to a salt spray from the 5±1% solution at 35±2℃. (Based upon JIS C0023/MIL-STD-202 Method 101D Cond. B)
6-7 SO2 Gas

24 hours exposure to 50±5ppm.
SO2 gas at 40±2℃.
6-8 NH3 Gas 40 minutes exposure to NH3 gas evaporating from 28% Ammonia solution


6-9 Solder-ability

Soldering Time: 5±0.5 sec.
Solder Temperature: 245±5℃

 Solder Wetting 95% of immersed area must show no voids, pin holes
6-10 Resistance to Soldering Heat

Solder pot method
Soldering time: 10±0.5 sec.
Solder Temperature: 260±5℃
Solder iron method
Soldering Time: 5±0.5 sec.
Solder Temperature: 370℃ ~ 400℃

 Appearance No Damage.



5. Actuator Insertion/Withdrawal Force

[Unit : kgf]

Circuits At Initial
Insertion (Max.) Withdrawal (Min.)
Single 2.5 0.20
02 5.0 0.40

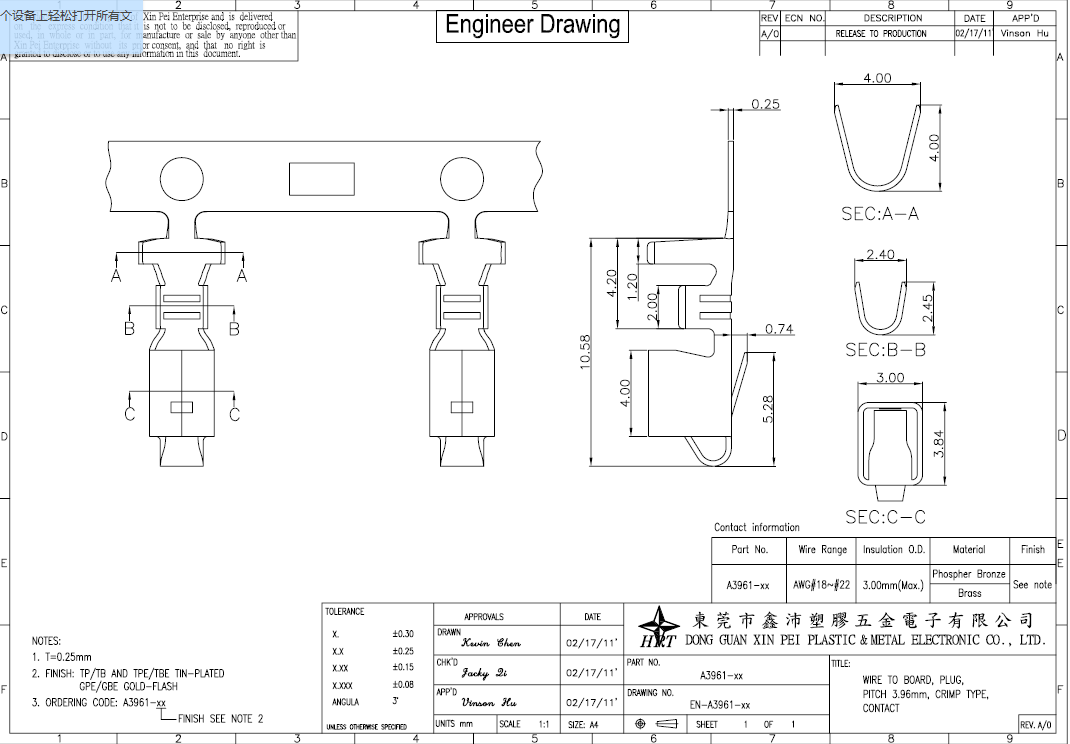

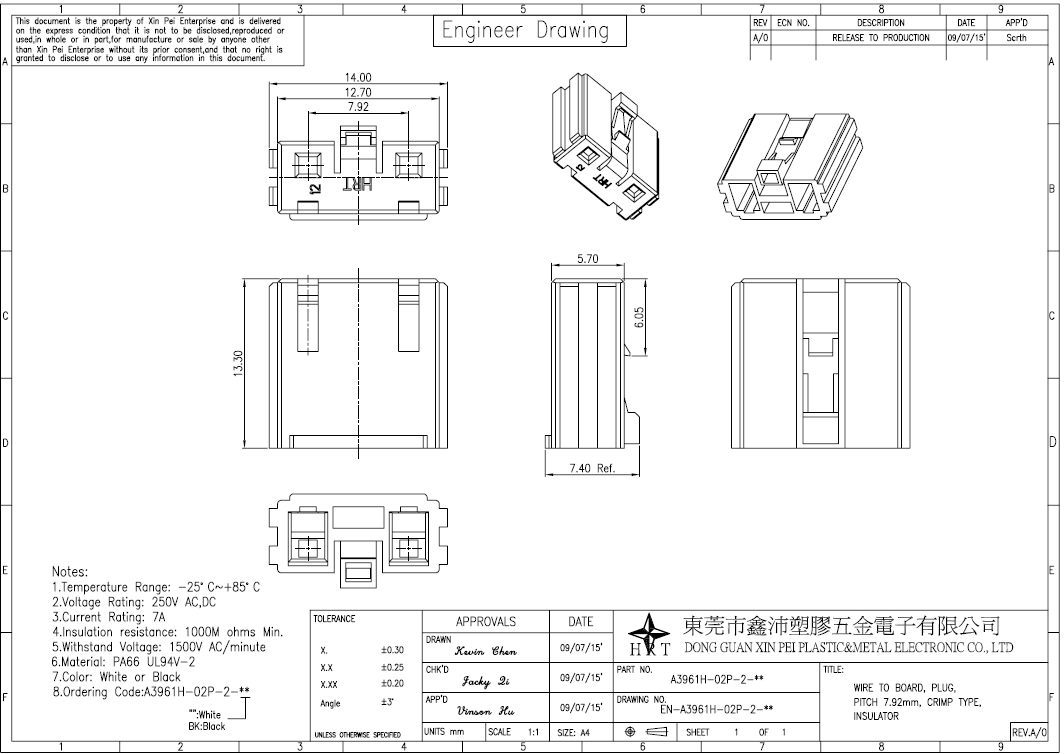

6. Drawing:

Pitch 7.92mm PCB Wire To Board Connectors Single Row 2 Pin Housing Lock For TV SetPitch 7.92mm PCB Wire To Board Connectors Single Row 2 Pin Housing Lock For TV Set
